Thermic Fluid Heaters

thermic fluid heating system generally used in a system where the pressure is not desired in a process and temperature requirement is higher and using the boiler for high-temperature services may increase the cost of a project.

Thermal Fluid Heaters can improve process consistency and reduce downtime leading to a further increase in profitability.

Our Company, could provide you thermic fluid heaters & heating systems that can be used to heat various fluids such as Thermal oil, Petroleum oil, Therminol, and even water.

ApplicationTextile Sweets And Savouries Sago Oil Refineries
MaterialCarbon Steel
Automation GradeAutomatic
Weight3600 Kg
Efficiency72-76%
Burner ControlYes
Flameproof EnclosuresYes
Max Outlet Temperature300 Degree Celsius
Rated Output600000 kcals/hr
Fuel Consumption Coal175 kg/hr
Fuel Consumption Husk/Coal260 kg/hr
Electrical Supply415V, 50 Hz, 3 Phase
Thermic Fluid Pump12.5 HP
Induced Draught Fan7.5 HP
Forced Draught Fan3 HP
Total Connected Load23 HP

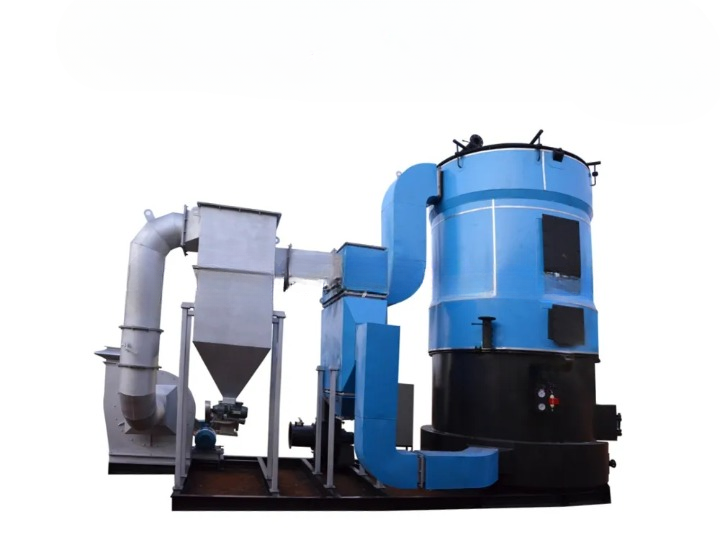

Solid Fuel Fired Vertical Thermic Fluid Heater

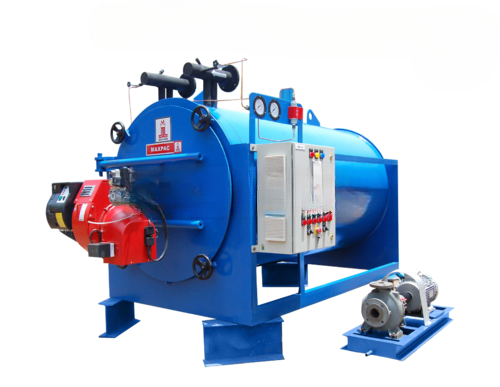

Oil And Gas Fired Thermic Fluid Heater

Heating SourceOil Or Cng As The Case May Be Customised
MaterialMild Steel
BrandMaxtherm India
ColorBlue
Heat output1,00,000 kcals/hr
Burner ControlYes
Liquid FuelHSD / LDO / FO /LPG
Maximum operating Temperature300/360 Degree C
Usage/ApplicationIndustrial
MaterialMild Steel
ColorBlue
Voltage V440 V
Country of OriginMade in India
Rated Output80000 Kcals/hr

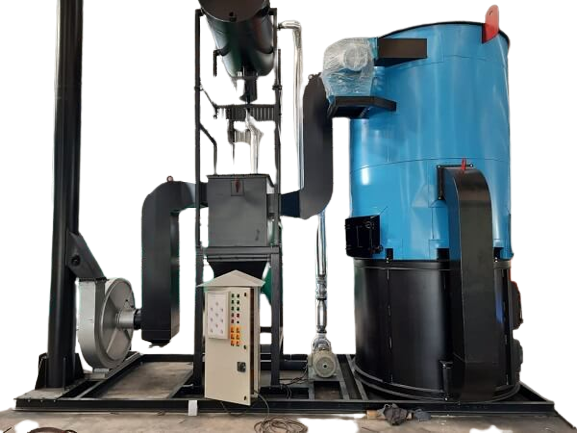

Coal Thermic Fluid Heater
